POST HOLE DIGGERS

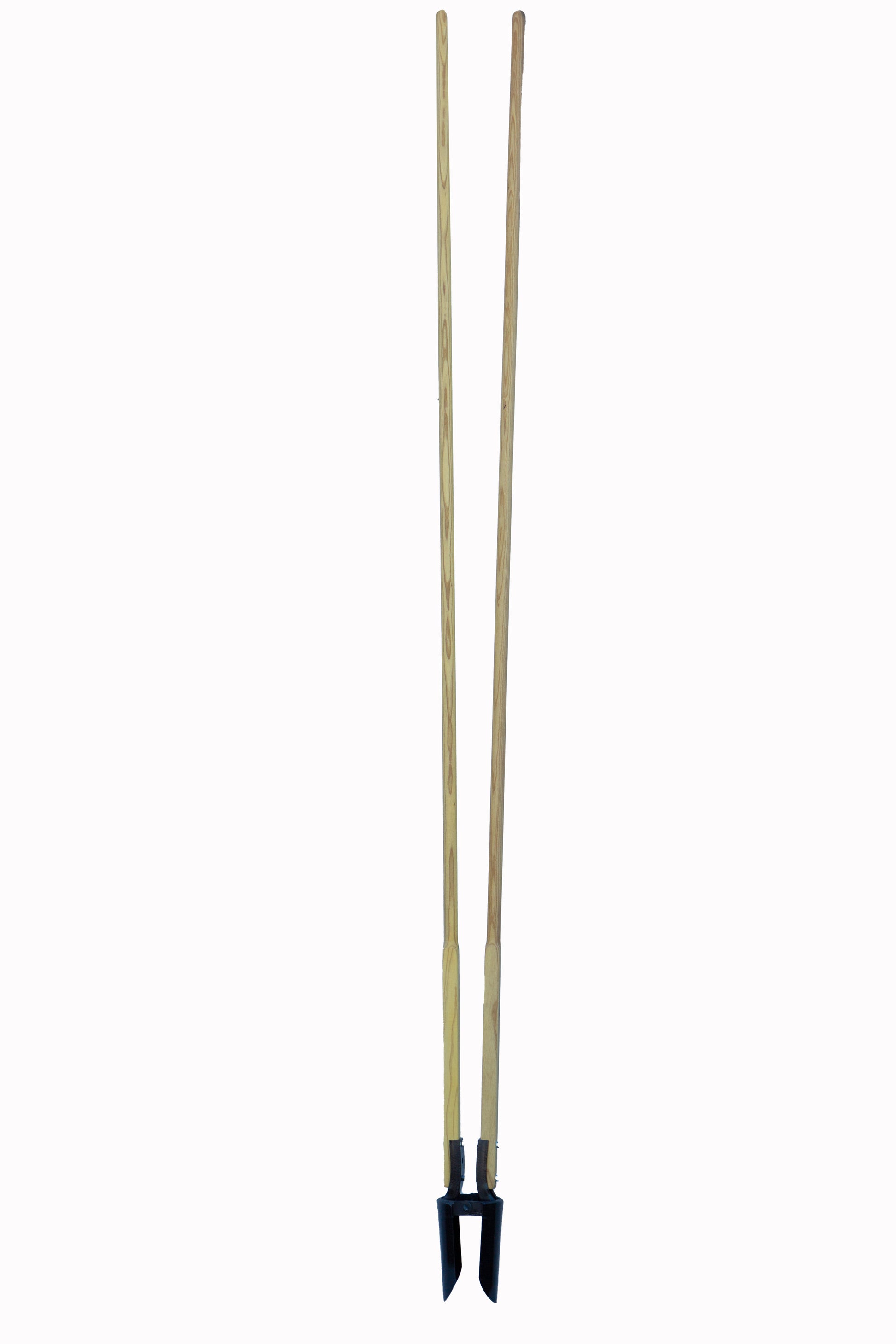

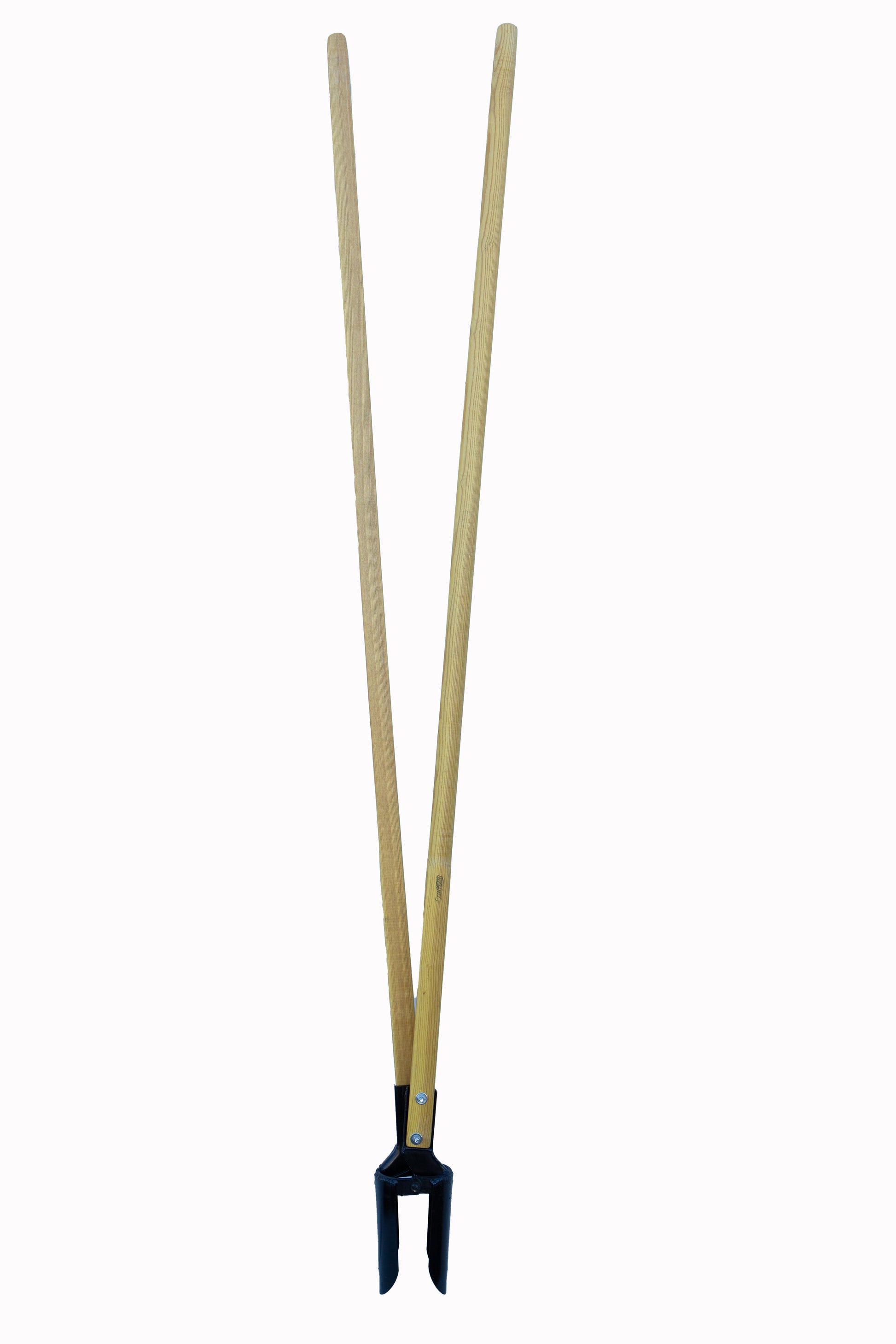

(Split Handle – left photo. Solid Handles – right photo)

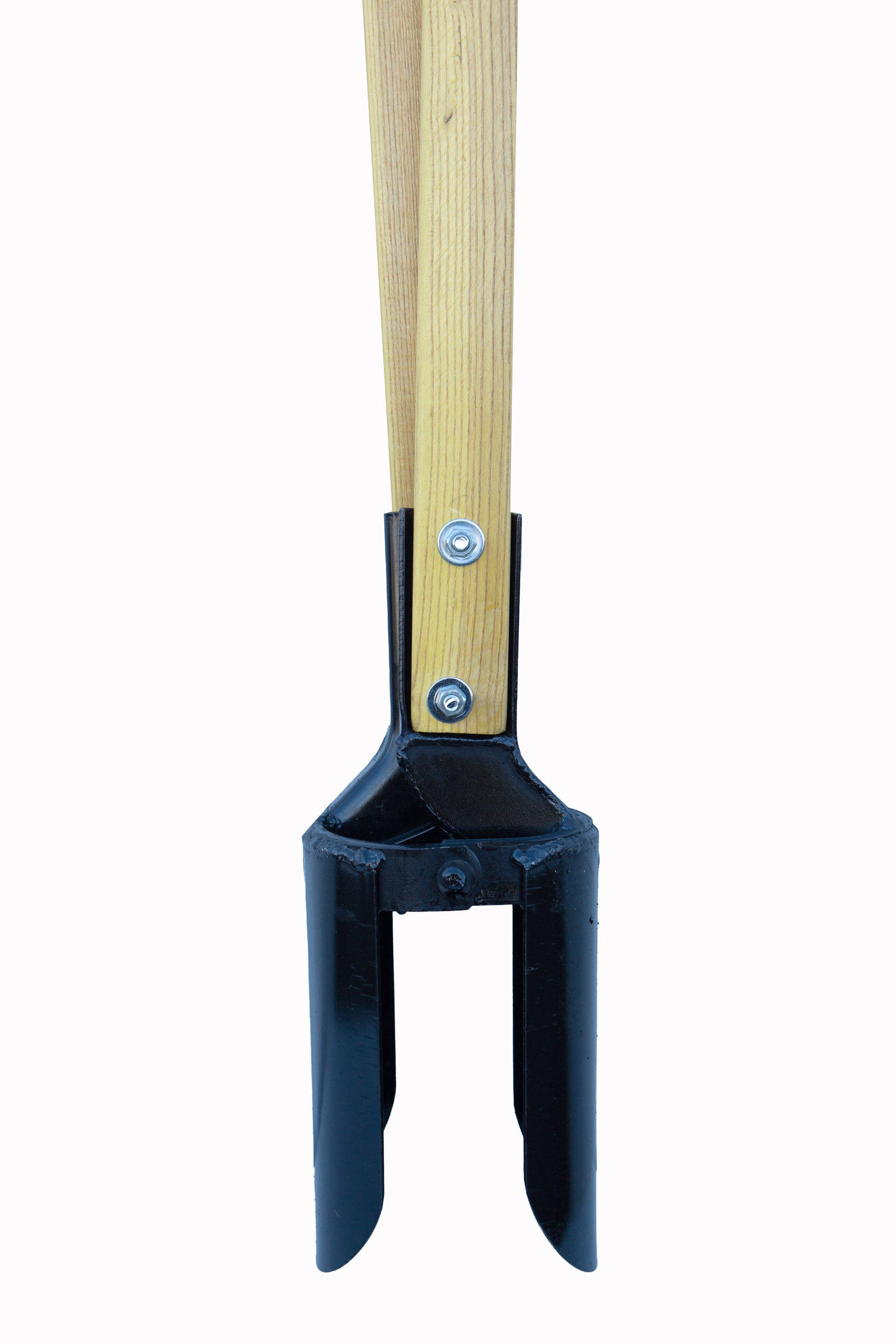

We offer Split Handle and Solid Handle Post Hole Diggers. The blades are made of our special alloy steel. The blades are attached by welding instead of riveting making a durable joint with no rivets to shear off. The fulcrum members are made of heavily constructed, channel-shaped steel – no castings. The diameter of the circle circumscribed by the digger blades is approximately 6 inches. Two bolts hold each handle to the digger head making them easy to replace when necessary.
The Split handles are used with a front to back motion. The Solid handles start out together and are pulled apart when using.
The operating action for the solid-handle digger begins with the handle together. The handles are then pulled directly apart to capture the load. With the split-handle digger, the operator uses a forward-and-back motion sliding the handles past each other. The split handle design has a wider blade opening, which allows for a larger hole to be dug
| TOOL REF # | TOOL DESCRIPTION | WT | Hook/other | HANDLE | |
| POST HOLE DIGGERS | 2050-6 | 6′ SPLIT POST HOLE DIGGER | 14 # | ||
| 2050-7 | 7′ SPLIT POST HOLE DIGGER | 14 # | |||
| 2050 | 8′ SPLIT POST HOLE DIGGER | 14 # | |||
| 2050-9 | 9′ SPLIT POST HOLE DIGGER | 16 # | |||
| 2050-10 | 10′ SPLIT POST HOLE DIGGER | 16 # | |||
| 2050-12 | 12′ SPLIT POST HOLE DIGGER | 18 # | |||
| 2051-6 | 6′ SOLID POST HOLE DIGGER | 15 # | SOLID HANDLE DIAMETER (EACH) 1-1/4 INCH | ||
| 2051-7 | 7′ SOLID POST HOLE DIGGER | 15 # | |||
| 2051 | 8′ SOLID POST HOLE DIGGER | 15 # | |||
| 2051-9 | 9′ SOLID POST HOLE DIGGER | 16 # | |||
| 2051-10 | 10′ SOLID POST HOLE DIGGER | 16 # | |||
| 2051-12 | 12′ SOLID POST HOLE DIGGER | 18 # | |||
| 2051-14 | 14′ SOLID POST HOLE DIGGER | 20 # | |||
| POST HOLE DIGGER PARTS | 2051-1R | DIGGER BLADE (1 ONLY) | 2 # | ||
| 2050-103 | SPLIT DIGGER HEAD ASSY | 8 # | |||
| 2051-103 | SOLID DIGGER HEAD ASSY | 8 # | |||
| 2050A-6 | 6′ SPLIT POST HOLE DIGGER HANDLE | 7 # | |||
| 2050A-7 | 7′ SPLIT POST HOLE DIGGER HANDLE | 7 # | |||
| 2050A-8 | 8′ SPLIT POST HOLE DIGGER HANDLE | 8 # | |||
| 2050A-9 | 9′ SPLIT POST HOLE DIGGER HANDLE | 9 # | |||
| 2050A-10 | 10′ SPLIT POST HOLE DIGGER HANDLE | 10 # | |||
| 2050A-12 | 12′ SPLIT POST HOLE DIGGER HANDLE | 11 # | |||
| 2051A-6 | 6′ SOLID POST HOLE DIGGER HANDLE | 7 # | |||
| 2051A-7 | 7′ SOLID POST HOLE DIGGER HANDLE | 7 # | |||
| 2051A-8 | 8′ SOLID POST HOLE DIGGER HANDLE | 8 # | |||
| 2051A-9 | 9′ SOLID POST HOLE DIGGER HANDLE | 8 # | |||
| 2051A-10 | 10′ SOLID POST HOLE DIGGER HANDLE | 9 # | |||
| 2051A-12 | 12′ SOLID POST HOLE DIGGER HANDLE | 11 # | |||
| 2051A-14 | 14′ SOLID POST HOLE DIGGER HANDLE | 12 # | |||
| DBS-Solid | DIGGER BOLT SET FOR SOLID DIGGER | 1 # | |||
| DBS-Split | DIGGER BOLT SET FOR SPLIT DIGGER | 1 # | |||
